Extensores HDBaseT™, Extensor HDBaseT™ de 70 M.

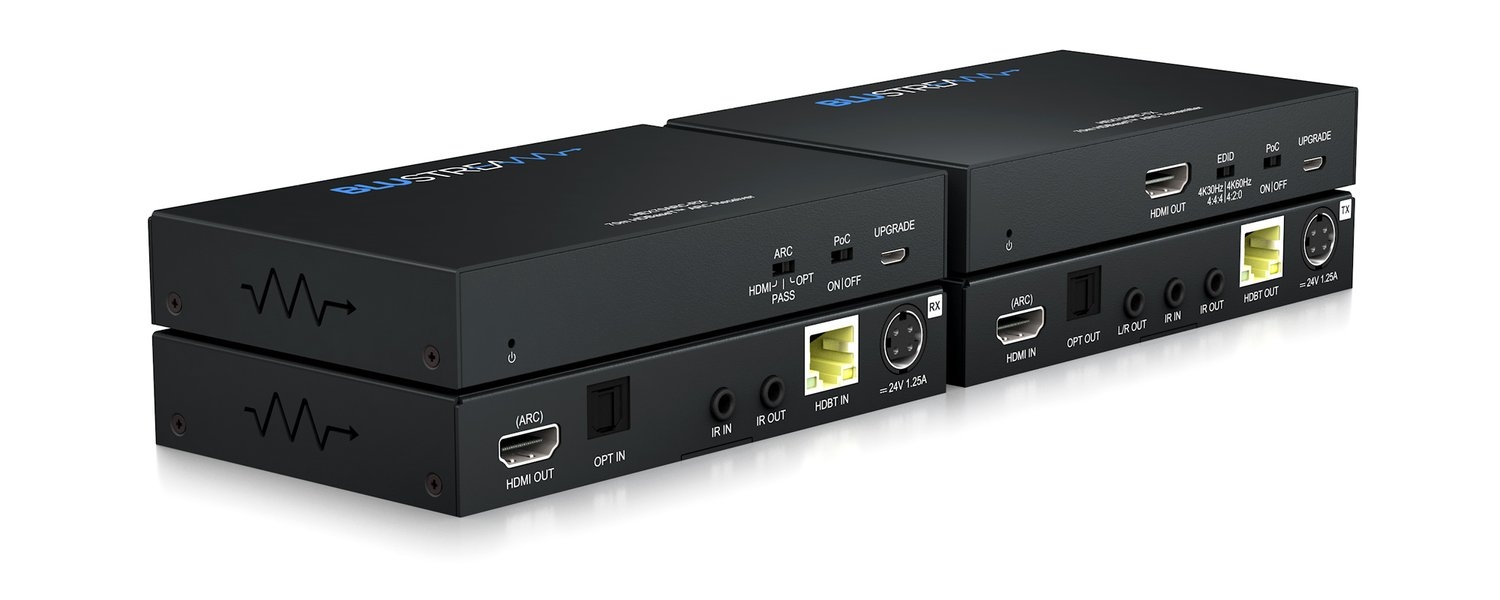

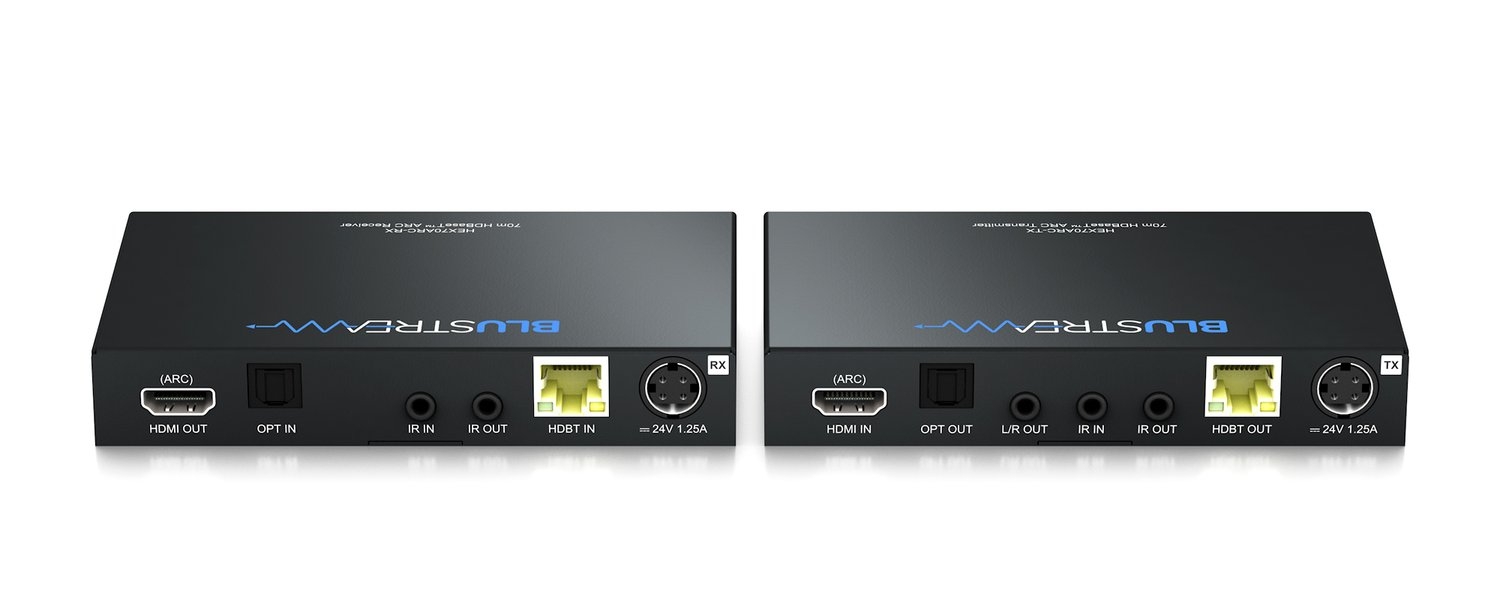

HEX70ARC-KIT
HDBaseT™ ARC Extender Set - 70m (4K up to 40m), ARC, Bi-directional IR, Bi-directional PoC
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Extends HDMI 1080p up to a distance of 70m over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
- Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
- Bi-directional IR pass-through
- Supplied with Blustream IR receiver and emitter
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- HDCP 2.2 compliant with smart EDID management
The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).
| Modelo: | HEX70ARC-TX |
|---|---|
| Video Input Connectors: | 1 x HDMI Type A, female |
| Video Output Connectors: | 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female |
| Audio Output Ports: | 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only) |
| IR Input Port: | 1 x 3.5mm stereo jack |
| IR Output Port: | 1 x 3.5mm mono jack |
| Product Upgrade: | 1 x Micro-USB, female |
| Casing Dimensions (W x D x H): | 135 x 84 x 21mm |
| Modelo: | HEX70ARC-RX |
| Video Input Connectors: | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors: | 1 x HDMI Type A, female |
| Audio Input Port: | 1 x Optical (S/PDIF) |
| IR Input Port: | 1 x 3.5mm stereo jack |
| IR Output Port: | 1 x 3.5mm mono jack |
| Product Upgrade: | 1 x Micro-USB, female |
| Casing Dimensions (W x D x H): | 135 x 84 x 21mm |
| Power Supply: | 1 x 24V/1.25A DC, 4-pin DIN connector |
| Box Dimensions (W x D x H): | 248 x 151 x 103mm |
| Shipping Weight: | 1kg |
| Operating Temperature: | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature: | -4°F to 140°F (-25°C to +70°C) |
| Tipo | Nombre | Formato | Idioma |
|---|---|---|---|
| Sin documentación asociada. | |||
