Distribución HDMI, Conmutadores de presentación multiformato
MFP31
Portable Multi-Format Presentation Switch
- Features 1 x HDMI, 1 x USB-C and 1x Mini DisplayPort™ input which can be switched to a single HDMI output
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports resolutions up to 4K UHD 60Hz 4:4:4
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports Mini DisplayPort™ up to 4K UHD 60Hz 4:4:4, DP1.2
- Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2
- Supports both manual or automatic source selection
- HDCP 2.2 compliant

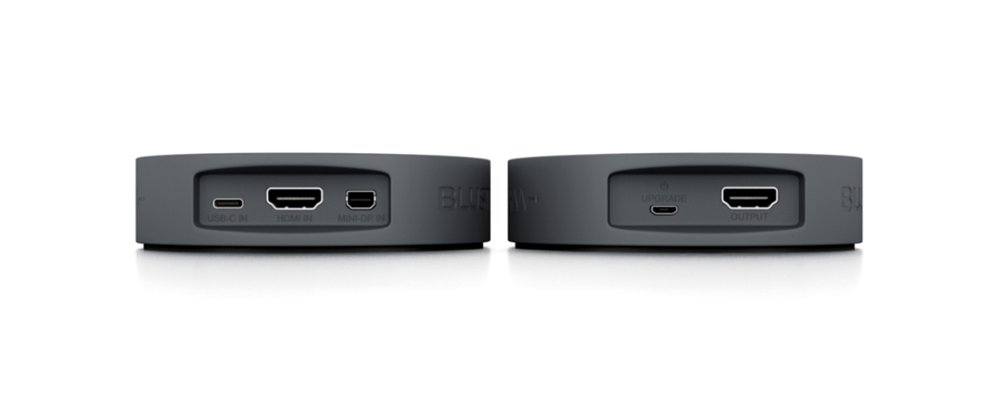

Our MFP31 is a portable multi-format presentation switch featuring HDMI, Mini DisplayPort™ and USB-C inputs to a single HDMI output, with manual or auto source selection.
The MFP31 supports HDMI 2.0 18Gbps specification including pass-through of all formats of HDR and HDMI audio.
The MFP31 is an ideal product for your boardroom or hybrid working environment.
| Video Input Connectors: | 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Mini DisplayPort™ |
|---|---|
| Video Output Connectors: | 1 x HDMI Type A, 19-pin, female |
| Local power input: | 1 x Micro USB, female |
| Casing Dimensions (Dia x H): | 105mm x 25mm |
| Operating Temperature: | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature: | -4°F to 140°F (-25°C to +70°C) |
| Power Supply: | 5V/1A DC |
