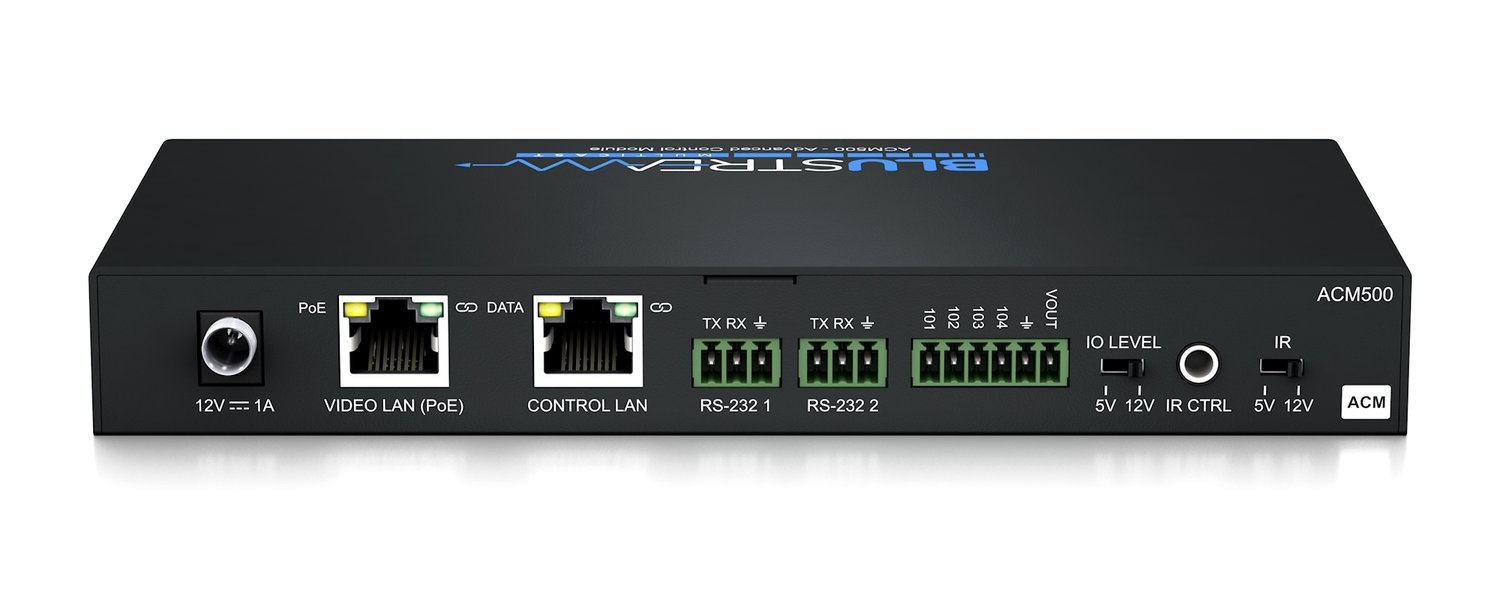

ACM500
Multicast Advanced Control Module for TCP/IP, RS-232 and IR control of Blustream SDVoE 10GbE Multicast Systems with Web-GUI
- Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system
- Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
- Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- Auto system configuration
- 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system - Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
- 5V/12V IR integration for control of Multicast system
- PoE (Power over Ethernet) to power Blustream product from PoE switch
- Local 12V power supply (optional) should Ethernet switch not support PoE
- Support for iOS and Android App control
- 3rd Party drivers available for all major control brands
Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.
The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
| Ethernet Port: | 2 x 1Gb LAN RJ45 connector (1x PoE support) |
|---|---|
| RS-232 Serial Port: | 2 x 3-Pin Phoenix connector |
| I/O Port: | 1 x 6-Pin Phoenix connector |
| IR Input Ports: | 1 x 3.5mm stereo jack |
| PoE draw: | 7.9W (typical), 8.4W (max load) |
| Product Upgrade: | 1 x Micro USB, female |
| Dimensions (W x D x H): | 190.4mm x 93mm x 25mm |
| Shipping Weight (Kit): | 0.6kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Power Supply: | PoE or 12V/1A DC |
